Horizontal Turning Center O-TH 150 D with two spindles

Horizontal Turning Center O-TH 150 D with two spindles

Technical Specifications**

Max. workpiece rotation diameter

350 mm

Max. machining diameter

150 mm

Max. machining length

100 mm

X-axis travel

500 mm

Z-axis travel

250 mm

Number of spindles

Spindle motor power

15 kW

Spindle torque

57,3 Nm

Max. spindle speed

4000 rpm

Spindle bore diameter

56 mm

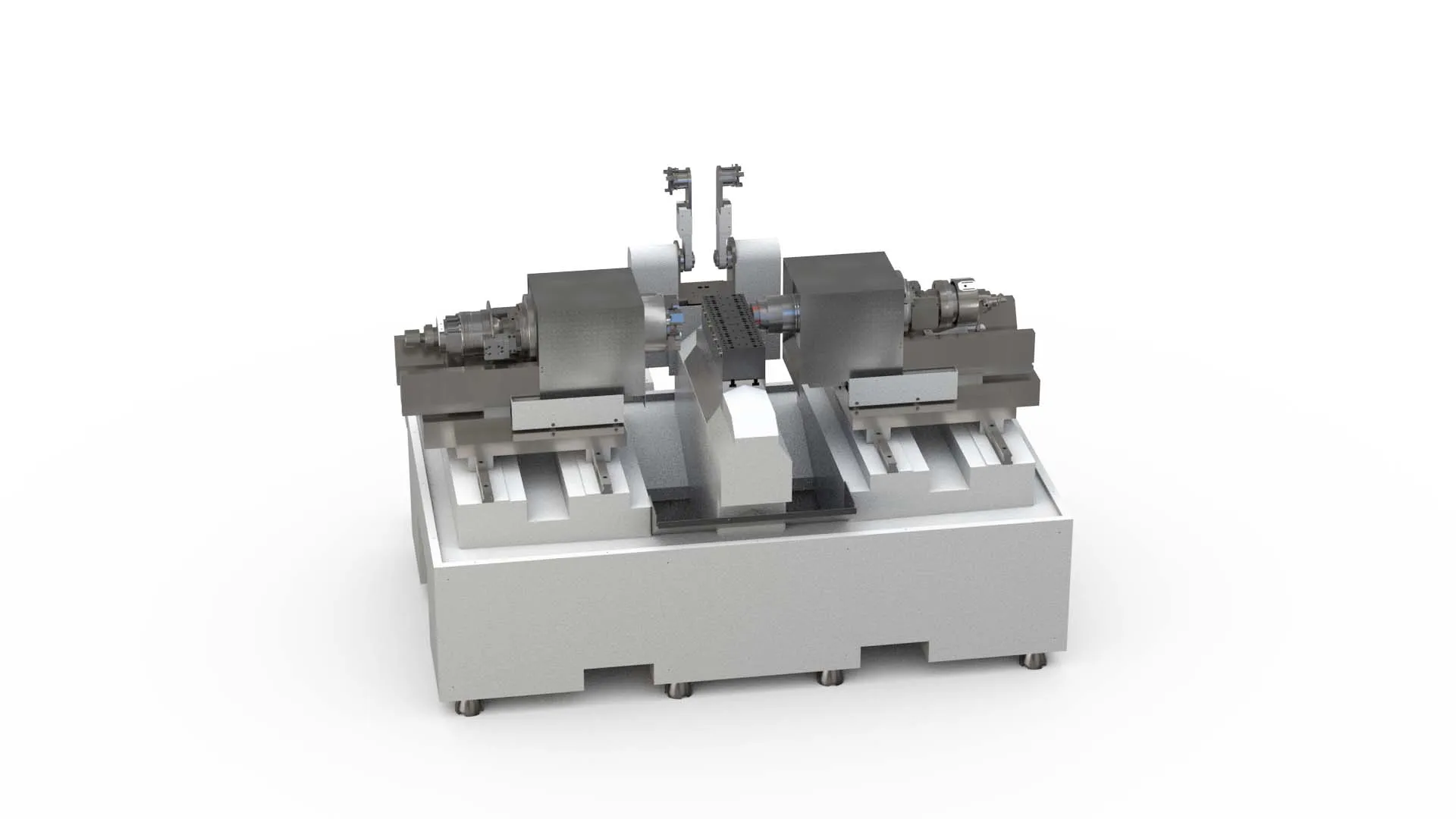

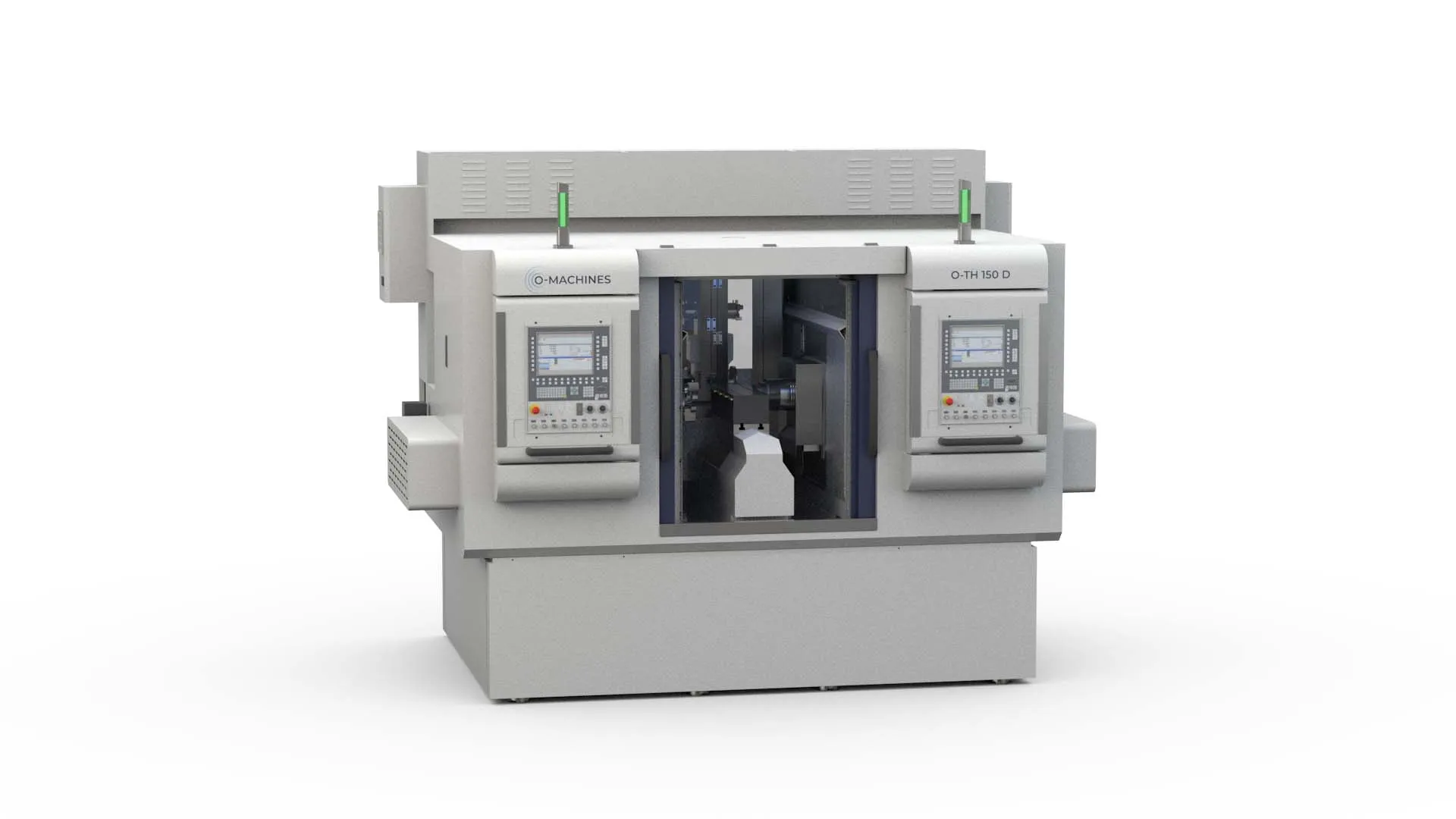

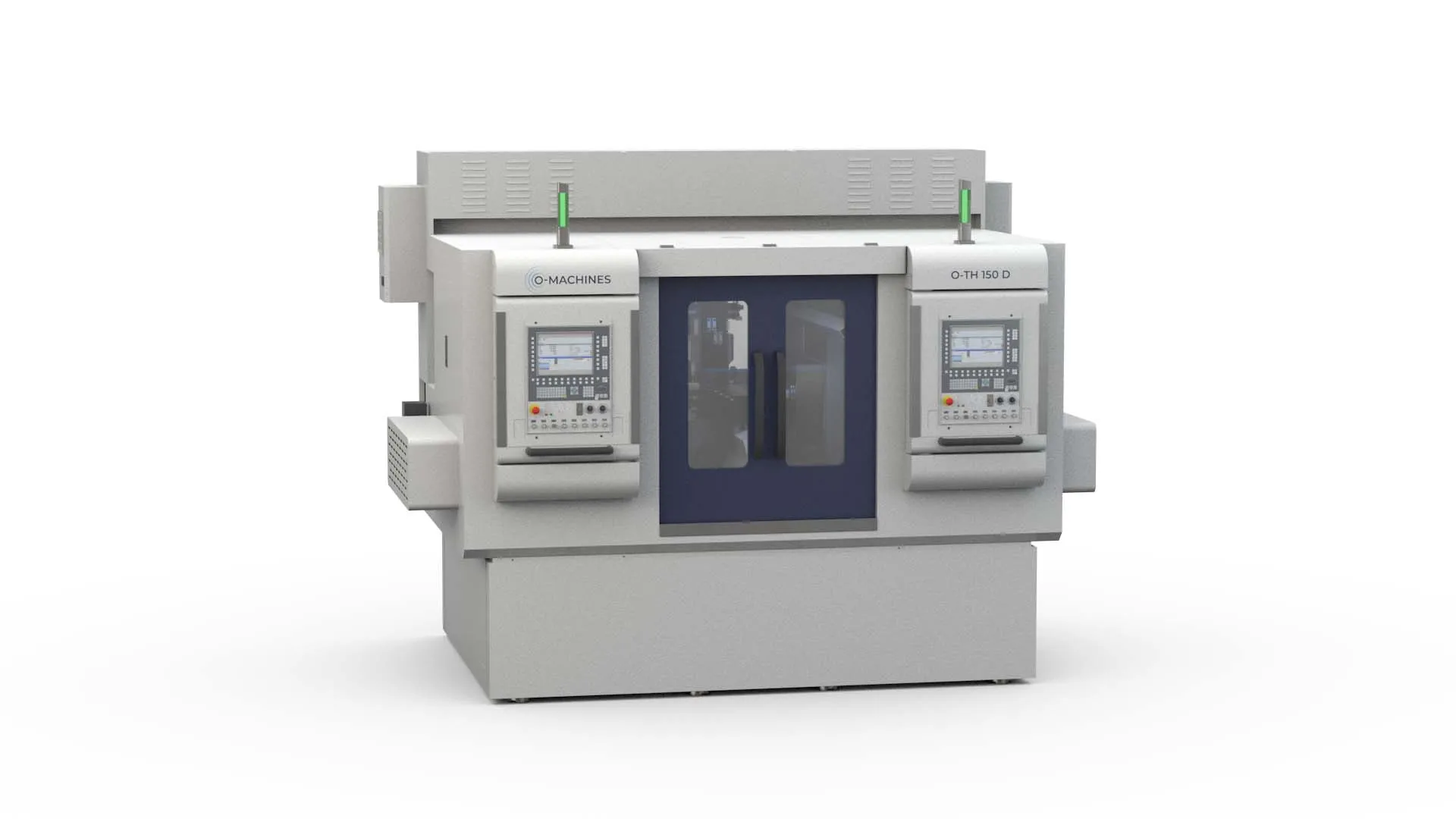

The high-precision horizontal turning center featuring two spindles within a single working area.
The machine is equipped with an automatic part loading and unloading system. Workpiece transfer for second-operation machining is performed directly between the spindles.
The O-TH 150 D is a space-efficient machine that, thanks to its configuration, delivers exceptional productivity.

* This information does not constitute a public offer. Optional services and equipment are not included in the standard delivery package.
** The manufacturer reserves the right to make design and technical modifications without prior notice. All descriptions and specifications are for reference only.
*** Example configuration.
