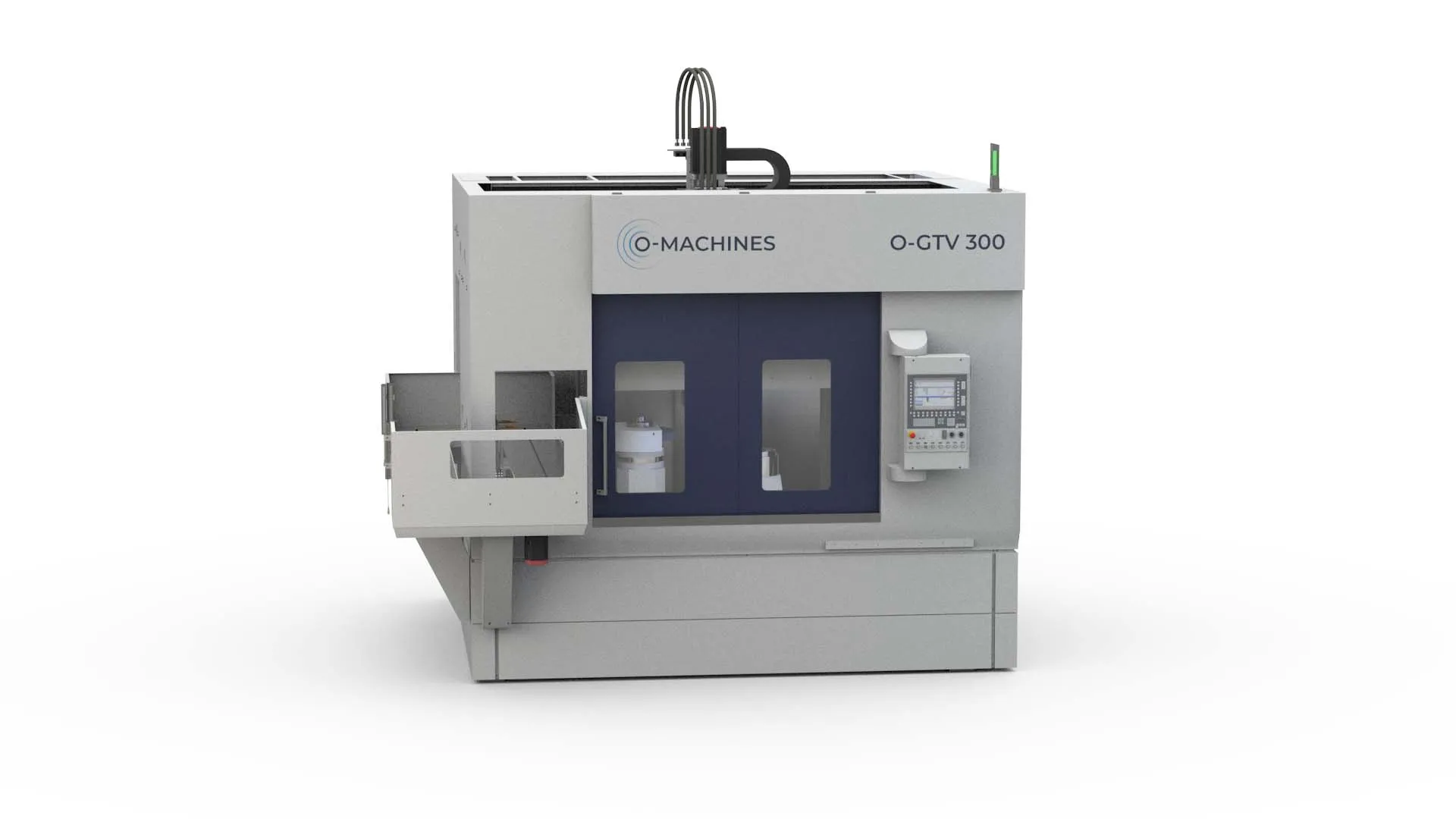

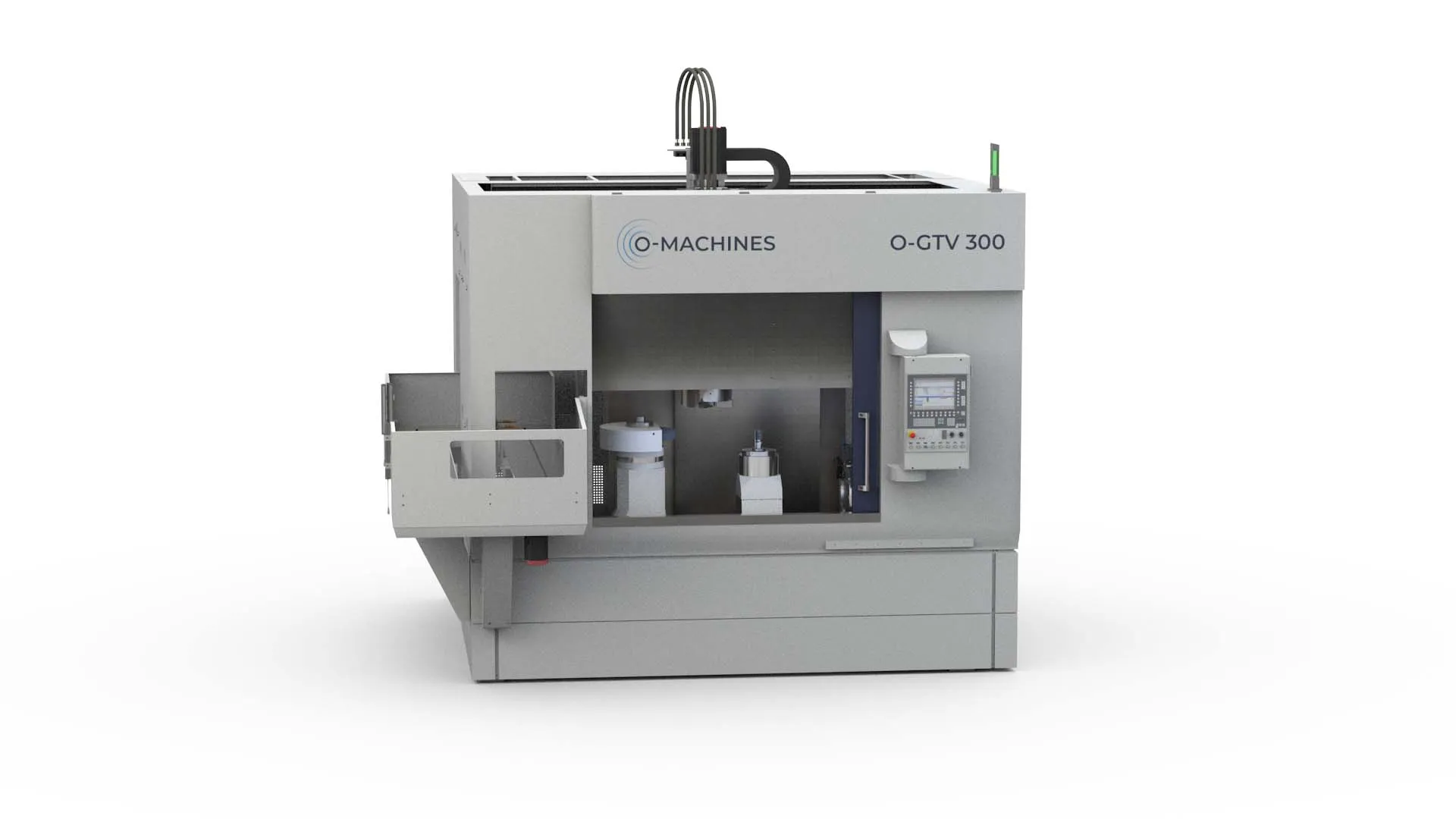

Vertical Turning and Grinding Center O-GTV 300

Technical Specifications**

Max. workpiece rotation diameter

350 mm

Max. machining diameter

300 mm

Max. machining length

200 mm

Main spindle motor power

29,3 kW

Rated main spindle torque

140 Nm

Max. main spindle speed

4500 rpm

Turret

12 pos.

X-axis travel

1700 mm

Z-axis travel

250 mm

External grinding spindle motor power

11 kW

External grinding spindle torque

42 Nm

External grinding spindle speed

5000 rpm

Internal grinding spindle motor power

12 kW

Internal grinding spindle torque

3,2 Nm

Internal grinding spindle speed

36000 rpm

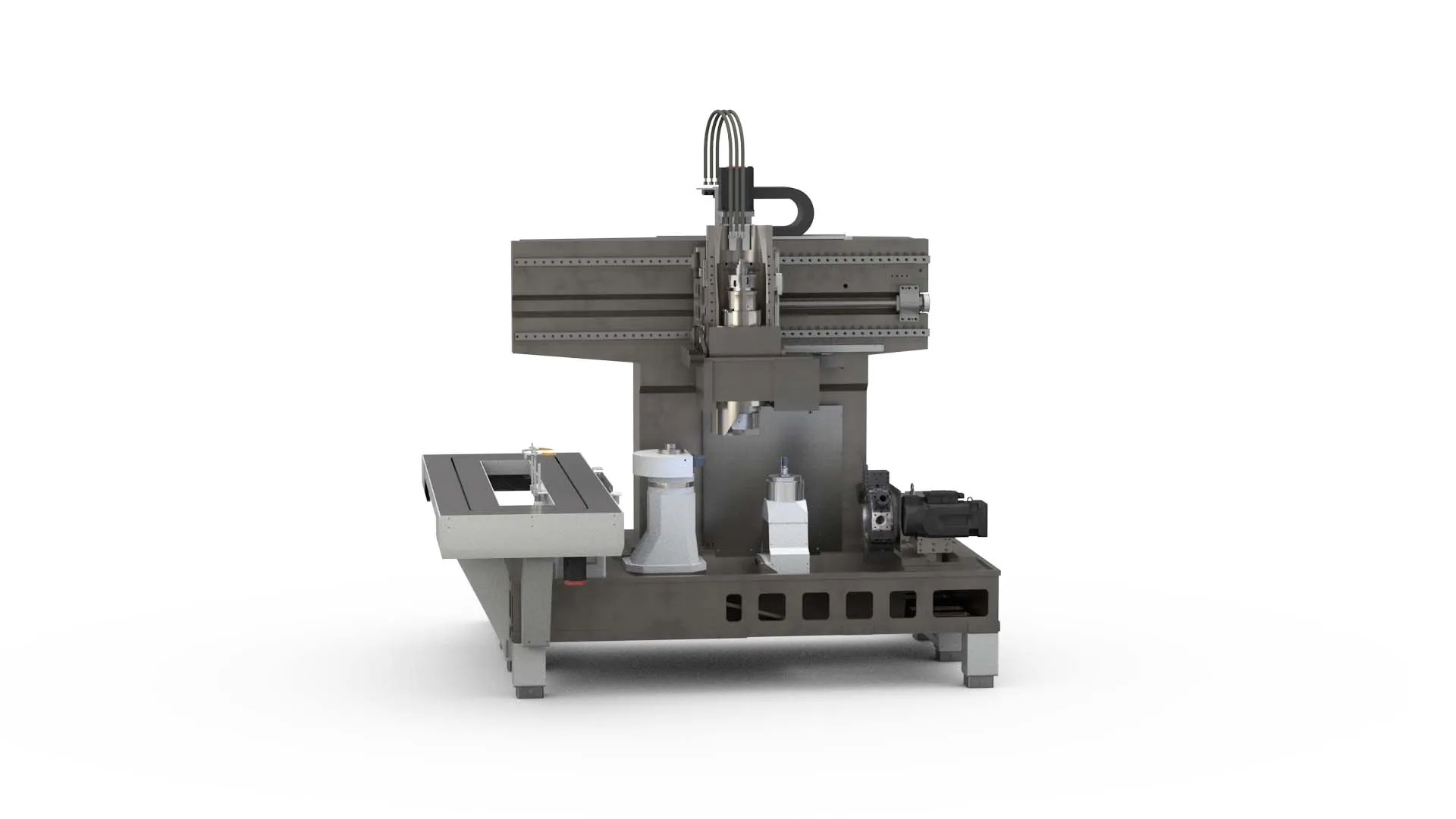

Vertical turning and grinding center with two grinding spindles—one for external grinding and one for internal grinding—and one turret.
The upper vertical main spindle ensures easy chip removal.
A flexible workpiece loading and unloading concept—either semi-automatic or fully automated—allows the machine to be used for both small-batch and mass production.
A compact solution that delivers high precision in a single setup.

* This information does not constitute a public offer. Optional services and equipment are not included in the standard delivery package.
** The manufacturer reserves the right to make design and technical modifications without prior notice. All descriptions and specifications are for reference only.
*** Example configuration.
